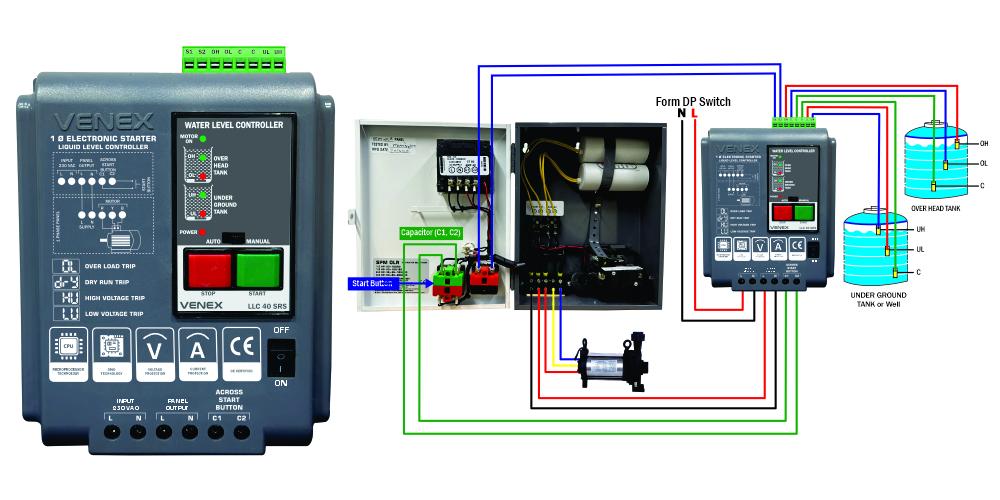

Single Phase Panel Water Level Controller
Features :
- Auto / Manual Operation
- Water Level Sensor Control
- Float Switch Support
- 40A Power Relay
- Suitable Up to 3.0 HP Submersible Panel
Technical Details :
Single Phase Panel Water Level Controller designed for automatic and manual control of submersible pumps using SS water-level sensors and float switches. Suitable for applications up to 3.0 HP.
Ordering Information
| Model No. | Supply Voltage | Sensor Input | Operational Mode |
|---|---|---|---|
| LLC 40 SRS | 230 VAC, ±10%, 50 Hz | SS Sensor & Float Switch | Auto - Manual (Auto mode working on water level sensor) |
Output Type
| Output | Description |
|---|---|
| Power Relay | 40 A Power Relay – L, N, Output |
| Power Relay | 40 A Power Relay – C, NO, Output – C1, C2 |
| Relay | 10 A Relay – C, NO, Output – S1, S2 |
| Application | Suitable up to 3.0 HP Submersible Panel |
No input details available.
No output details available.
No specifications details available.
