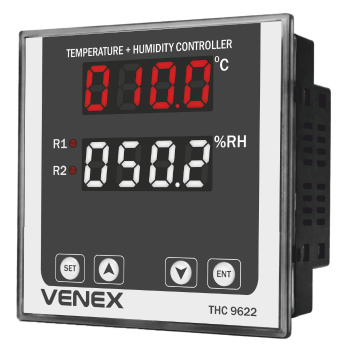

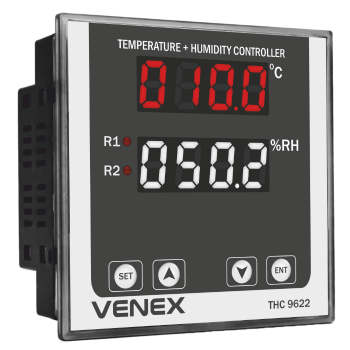

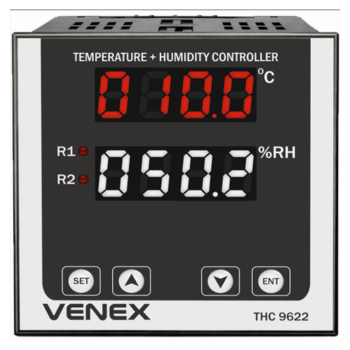

Humidity + Temperature Controller
Features :
- Combined temperature and humidity monitoring
- Dedicated display for temperature and relative humidity
- PT-100 and humidity sensor compatibility
- Dual relay output for independent control
- Wide operating environment range
- High-resolution digital display
- Adjustable measurement parameters
- Suitable for industrial and environmental applications
- Compact panel-mounted construction
Technical Details :
The Humidity + Temperature Controller is designed for simultaneous monitoring and control of temperature and relative humidity. It provides clear dual-parameter indication and relay-based switching, making it suitable for environments where both conditions need to be maintained within defined limits.
Overview
| Model | THC 9622 |
|---|---|
| Frame | 96 × 96 mm |
| Panel | 92 × 92 mm |
| Display | 4 Digit 0.56" Red 4 Digit 0.39" White |
Input
| Input | Details |
|---|---|
| Sensor | PT 100 (RTD / RTD.1) + Humidity Sensor |
| Range | 20% to 90% RH or 0.0 to 5.0 VDC |
Output
| Output | Details |
|---|---|
| Capacity | 1CO + 1CO, 7 Amp, 230 VAC (NO - C - NC) |
Specifications
| Specifications | Details |
|---|---|
| Power supply | 90~285V AC, 50~60 Hz |
| Power consumption | <5W |
| Working environment | Temperature: -10°C~60°C, Humidity: <80% RH |
| Storage environment | Temperature: -20°C~70°C, Humidity: <90% RH |
| Measuring range | Temperature: 0.0°C to 400°C or -50.0°C to 199.9°C Humidity: 20.0%~90.0% RH |
| Measuring accuracy | Temperature: ±1%, Humidity: ±5% |
| Dielectric strength | 1600V AC (1 Min.) |
| Dimension (mm) | 96W × 96H × 55L |
