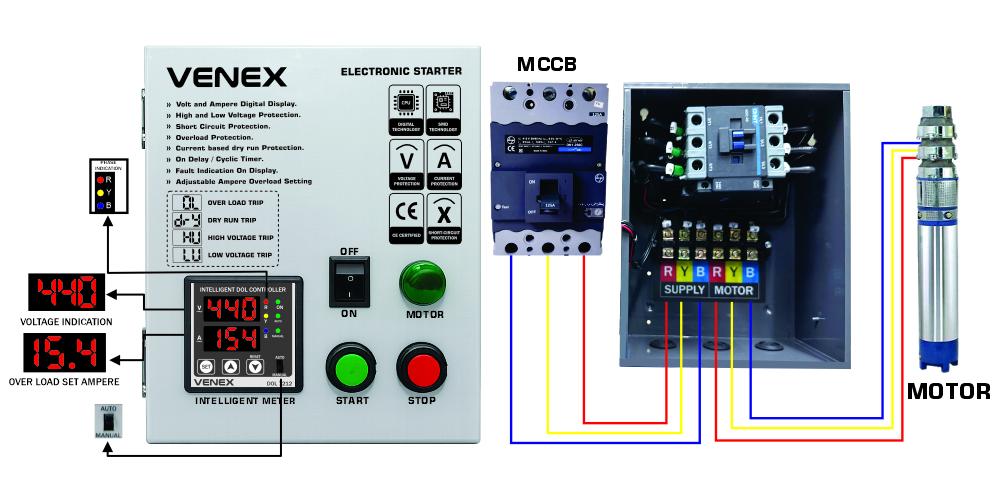

3 Phase DOL Starter – E Series
Features :
- Available up to 50 HP
- Intelligent digital meter
- Voltage and current indication
- Delay OFF and cyclic timer
- Dry reset timer
- Auto/manual operation
- Heavy-duty terminal
- Copper wiring
- MS powder-coated enclosure
Technical Details :
The 3 Phase DOL Starter – E Series is an electronic direct-on-line motor starter designed for three-phase motors across a wide range of capacities. It combines intelligent monitoring with essential motor protection and a durable enclosure for dependable operation in industrial and pumping applications.
Models
| Model | Load Capacity |
|---|---|
| E DOL 09 | Up to 3 HP |
| E DOL 18 | Up to 5 HP |
| E DOL 25 | Up to 7.5 HP |
| E DOL 32 | Up to 10 HP |
| E DOL 40 | Up to 15 HP |
| E DOL 50 | Up to 20 HP |
| E DOL 95 | Up to 50 HP |
Protection
| Protection | Details |
|---|---|
| Overload | Over Current Protection |
| SPP | SPP Protection |
| Dry Run | Under Current Protection |
| Phase Protection | Phase Loss & Phase Sequence |
| Voltage Protection | High & Low Voltage |
| Short Circuit | Short Circuit Protection |
Specifications
| Parameter | Details |
|---|---|
| Starter Type | 3 Phase Electronic DOL Starter |
| Control Technology | Microprocessor Based |
| Meter | Intelligent Digital Meter |
| Indication | Voltage & Overload Load Ampere |
| Timer | Delay OFF & Cyclic Timer |
| Reset | Dry Reset Timer |
| Operation | Auto / Manual Mode |
| Terminal | Heavy-Duty Bakelite Terminal |
| Wiring | Copper Wire |
| Enclosure | MS Powder-Coated Enclosure |
| Application | Three-Phase Motor Control |
