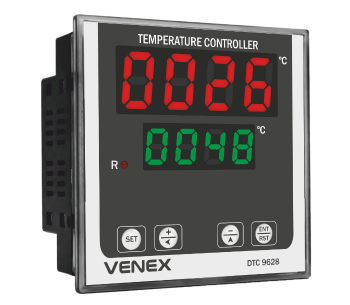

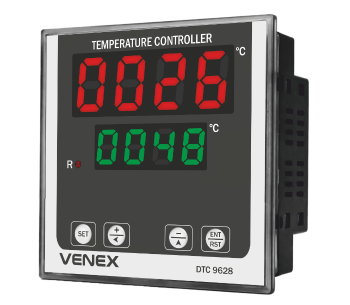

Jumbo Double Display Temperature Controller
Features :
• Jumbo dual digital display
• Supports J, K, OR, RTD & PT-100 sensors
• Configurable HEAT/COOL operation
• Relay and SSR output options
• Dual set-point control
• PID / ON-OFF control modes
• ±1% FSD accuracy
• Compact panel-mount design
Technical Details :
The DTC 9628 Jumbo Double Display Temperature Controller is a versatile temperature control unit with dual digital displays, configurable sensor inputs, and selectable heating/cooling control modes. It is suitable for industrial temperature monitoring and control applications.
Models
| Model | Frame | Panel Cutout | Display |
|---|---|---|---|
| DTC 9628 | 96 × 96 mm | 92 × 92 mm | 4 Digit 0.80" Red + 4 Digit 0.56" Green |
Input
| Parameter | Details |
|---|---|
| Sensor | J, K, OR, RTD & RTD 1.2W/3W (Configurable) |
| Additional Sensor | R/S/T/N/PT 1000 also available |
| J/K Range | 0°C to 400°C & 0°C to 600°C |
| K Range | 0°C to 1200°C |
| PT-100 2W/3W | 0°C to 400°C / -50°C to 200°C |
Output
| Parameter | Details |
|---|---|
| Control Output | Relay + Relay + SSR |
| Heating Output | Relay + SSR (HEAT) |
| Cooling Output | Relay + SSR (COOL) |
| Relay Capacity | 10A, 7 Amp, 230 Volt AC |
| SSR | 12V DC approximately |
Specifications
| Parameter | Details |
|---|---|
| Frame Size | 96 × 96 mm |
| Panel Cutout | 92 × 92 mm |
| Display | 4 Digit 0.80" Red + 4 Digit 0.56" Green |
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 2 Set Point |
| Control Mode | Time Proportional / ON-OFF / PID (Configurable) |
| Operating Mode | HEAT / COOL Mode Selectable |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH, Non-Condensing |
