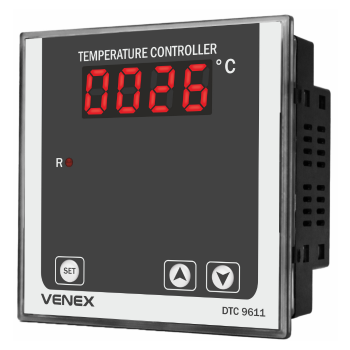

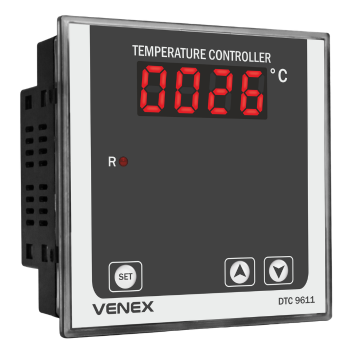

Single Display Temperature Controller
Features :
- Supports J, K, RTD & RTD 1.2W/3W sensors
- Temperature range up to 1200°C
- ON/OFF and Time Proportional control modes
- Relay and SSR output options
- ±1% FSD accuracy
- 4-digit red LED display
- 230V AC power supply
- Durable Polycarbonate + ABS enclosure
- Available in multiple panel sizes
- Suitable for varied industrial temperature-control applications
Technical Details :
The Single Display Temperature Controller provides precise temperature measurement and dependable process control for industrial applications. With support for multiple sensor types, configurable control modes, and relay/SSR outputs, it offers flexible operation with a clear 4-digit red LED display.
Overview

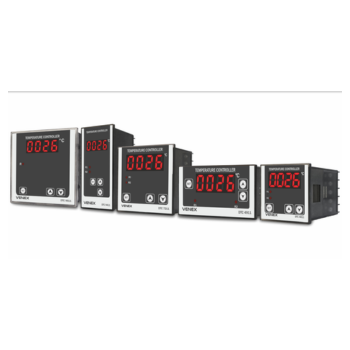

Model | DTC 9611 | DTC 9811 | DTC 7211 | DTC 4911 | DTC 4811 |
Frame | 96 x 96 | 96 x 48 | 72 x 72 | 48 x 96 | 48 x 48 |
Panel | 92 x 92 | 92 x 44 | 68 x 68 | 44 x 92 | 44 x 44 |
Display | 4 Digit 0.56” RED | 4 Digit 0.39” RED | 4 Digit 0.56” RED | 4 Digit 0.56” RED | 4 Digit 0.39” RED |
Input
Sensor | J & K OR RTD & RTD.1 2W/3W (Configurable) (Also available in R/S/T/N/PT 1000) |
Range | J(0 °C to 400°C & 0°C to 600°C), K(0°C to 1200°C), PT-100 2W/3W(0°C to 400°C, -50.0°C to 200.0°C) |
Output
Control Output | RELAY + SSR |
Capacity | 1CO, 7 Amp, 230 Volt AC |
SSR | 12V DC Approximately |
Specifications
Supply Voltage | 230v AC, ±10%, 50Hz |
Set Point | 1 Set Point |
Control Mode | Time Proportional / ON-OFF (Configurable) |
Operating Mode | HEAT or COOL Mode (Factory Set) |
Accuracy | ±1% of FSD |
Enclosure Material | Polycarbonate + ABS Plastic |
Operating Temperature | 0°C - 55°C |
Relative Humidity | Up to 95% RH Non Condensing |
No input details available.
No output details available.
No specifications details available.
Note
Sensor Type R,S,T,E,B Available
