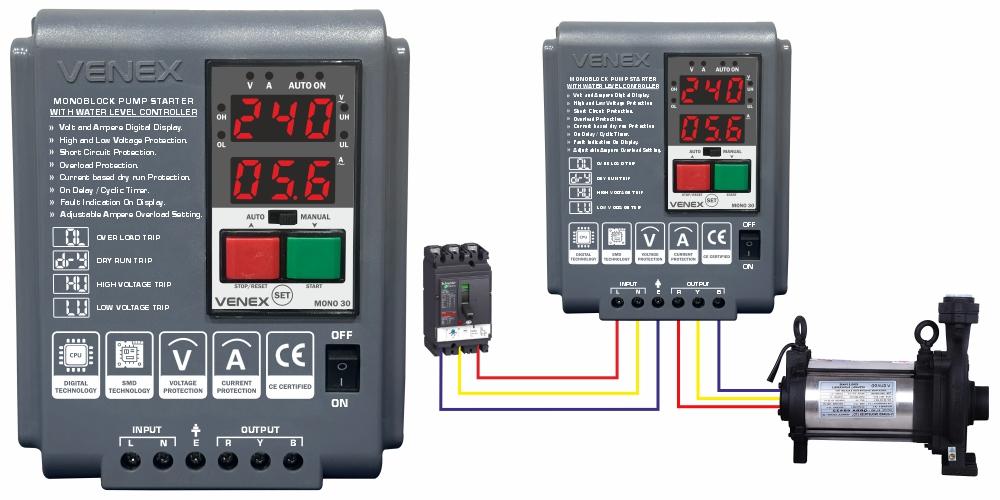

Monoblock Pump Starter
Features :
- Automatic motor start/stop based on tank level
- Auto / Manual operating mode
- Delay OFF and cyclic timer
- Dry-run reset timer
- High and low voltage protection
- Overload protection
- Tank level LED indication
- Helps reduce water and electricity wastage
Technical Details :
The Monoblock Pump Starter is designed for reliable automatic protection and control of single-phase monoblock pumps. It combines water-level sensing with electrical protection to automatically stop and restart the motor according to tank conditions.
Models
| Model No. | Load Capacity | Input Supply | Sensor |
|---|---|---|---|
| WLC 30 | 0.5 HP to 1 HP (50 MFD Capacitor) | 230 VAC, 50 Hz, ±10% | SS, Carbon & Float Switch |
Input
| Input Type |
|---|
| SS, Carbon & Float Switch |
Output
| Output Type |
|---|
| Single-Phase Monoblock Pump Control Output |
Specifications
| Specification | Details |
|---|---|
| Supply Voltage | 230 VAC |
| Frequency | 50 Hz |
| Voltage Tolerance | ±10% |
| Motor Capacity | 0.5 HP to 1 HP |
| Capacitor | 50 MFD |
| Protection | Overload, Dry Run, High & Low Voltage |
| Control Modes | Auto / Manual |
No input details available.
No output details available.
No specifications details available.
