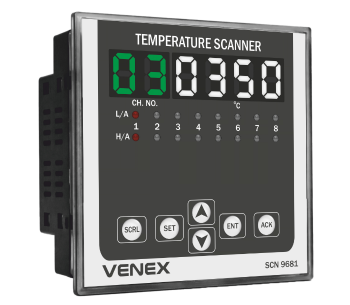

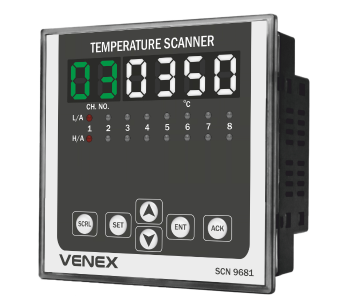

8 Channel Temperature Scanner
Features :
• 8-channel temperature monitoring
• Supports J, K, OR and RTD sensors
• RS-485 communication available
• Alarm output functionality
• Relay + relay cooling output
• Alarm mode operation
• 6-digit digital display
• Wide supply voltage range
Technical Details :
The SCN 9681 8 Channel Temperature Scanner is designed for multi-point temperature monitoring with support for multiple sensor types, alarm functionality, and optional RS-485 communication. It provides centralized monitoring for industrial temperature applications.
Models
| Model | Frame | Panel Cutout | Display |
|---|---|---|---|
| SCN 9681 | 96 × 96 mm | 92 × 92 mm | 6 Digit 0.56" Red |
Input
| Parameter | Details |
|---|---|
| Sensor | J, K, OR, RTD & RTD 1.2W/3W (Configurable) |
| Additional Sensor | R/S/T/N/PT 1000 also available |
| J/K Range | J: 0°C to 400°C; K: 0°C to 600°C / 1200°C |
| PT-100 2W/3W | 0°C to 400°C / -50°C to 200°C |
Output
| Parameter | Details |
|---|---|
| Control Output | Relay + Relay (COOL) |
| Relay Capacity | 1CO + 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
| Communication | RS-485 Available |
Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 90–275 VAC, 50/60 Hz |
| Control Mode | Alarm Mode |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C – 55°C |
| Relative Humidity | Up to 95% RH, Non-Condensing |
