Technical Details :
The Double Display Temperature Controller is designed for precise monitoring and control of temperature with dual set-point functionality. It supports multiple sensor inputs, configurable PID/ON-OFF control, and separate heating and cooling operation for flexible industrial processes.
Overview

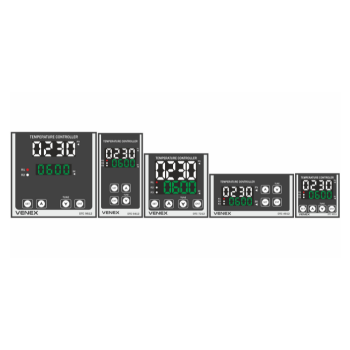

| Model | Frame | Panel | Display |
|---|---|---|---|

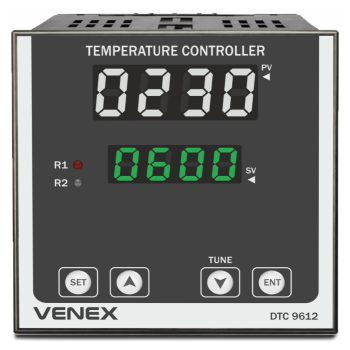

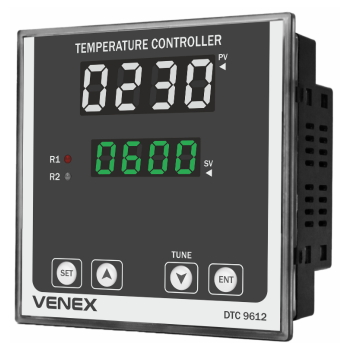

| DTC 9612 | 96 × 96 | 92 × 92 | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN |
| DTC 9412 | 96 × 48 | 92 × 44 | 4 Digit 0.39" RED / 4 Digit 0.29" GREEN |
| DTC 7212 | 72 × 72 | 68 × 68 | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN |
| DTC 4912 | 48 × 96 | 44 × 92 | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN |
| DTC 4812 | 48 × 48 | 44 × 44 | 4 Digit 0.39" RED / 4 Digit 0.29" GREEN |
Input
| Input Parameter | Details |
|---|---|
| Sensor | J & K or RTD & RTD.1 2W/3W (Configurable) |
| Additional Sensors | R/S/T/N/PT 1000 available |
| J Sensor Range | 0°C to 400°C |
| K Sensor Range | 0°C to 1200°C |
| PT-100 Range | 0°C to 400°C / -50°C to 200°C |
Output
| Output Parameter | Details |
|---|---|
| Control Output | RELAY + RELAY + SSR (Relay + SSR Heat + Relay Cool) |
| Capacity | 1CO + 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specification
| Specification | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 2 Set Points |
| Control Mode | Time Proportional / ON-OFF / PID (Configurable) |
| Operating Mode | HEAT / COOL Mode Selectable |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH Non-Condensing |
| Sensor Availability | Sensor Type R, S, T, E, B Available |
