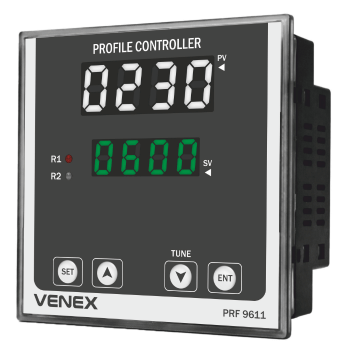

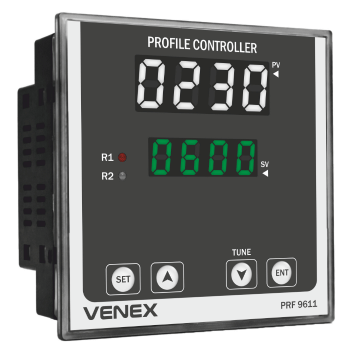

Profile Temperature Controller
Features :
- Supports 16-stage ramp-time programming
- Programmable temperature profiles for multi-step processes
- Compatible with J, K and RTD sensors
- Multiple model sizes for different panel requirements
- Dual LED display for process and set-point values
- Relay and SSR control outputs
- 16 independent set points
- Selectable PID, time-proportional and ON-OFF control
- Factory-set HEAT operating mode
- Easy front-panel programming and adjustment
Technical Details :
The Profile Temperature Controller is designed for programmed temperature control where processes require multiple temperature stages. With up to 16-stage ramp-time programming, it enables controlled temperature transitions and consistent process operation.
Overview

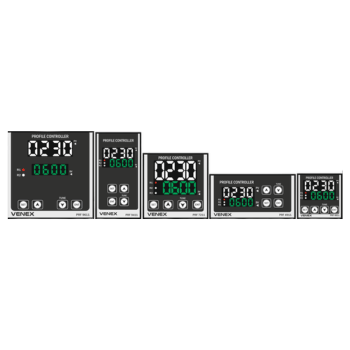

| Model | PRF 9611 | PRF 9411 | PRF 7211 | PRF 4911 | PRF 4811 |
|---|---|---|---|---|---|
| Frame | 96 × 96 mm | 96 × 48 mm | 72 × 72 mm | 48 × 96 mm | 48 × 48 mm |
| Panel | 92 × 92 mm | 92 × 44 mm | 68 × 68 mm | 44 × 92 mm | 44 × 44 mm |
| Display | 4 Digit 0.56" Red 4 Digit 0.39" Green | 4 Digit 0.39" Red 4 Digit 0.39" Green | 4 Digit 0.56" Red 4 Digit 0.39" Green | 4 Digit 0.56" Red 4 Digit 0.28" Green | 4 Digit 0.39" Red 4 Digit 0.28" Green |
Input
| Input | Details |
|---|---|
| Sensor | J & K or RTD & RTD.1 2W/3W (Configurable) Also available in R/S/T/N/PT 1000 |
| Range | J: 0°C to 400°C K: 0°C to 600°C K: 0°C to 1200°C PT-100 2W/3W: 0°C to 400°C PT-100: -50.0°C to 200.0°C |
| Stage | 0 to 16 Stage Selectable |
Output
| Output | Details |
|---|---|
| Control output | Relay + SSR |
| Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specifications
| Specifications | Details |
|---|---|
| Supply voltage | 230V AC, ±10%, 50Hz |
| Set point | 16 set points |
| Control mode | PID / Time Proportional / ON-OFF (Configurable) |
| Operating mode | Heat |
| Accuracy | ±1% of FSD |
| Enclosure material | Polycarbonate + ABS Plastic |
| Operating temperature | 0°C to 55°C |
| Relative humidity | Up to 95% RH, non-condensing |
