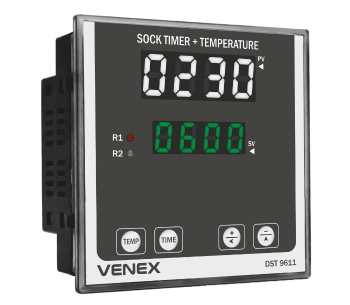

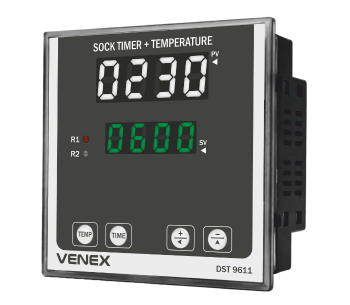

Sock Timer + Temperature Controller
Features :
- Combined sock timer + temperature control
- Time range up to 9999 seconds / minutes / hours
- J, K and RTD sensor options
- PID / Time Proportional / ON-OFF control
- Relay + SSR output
- 1 set point
- Easy front-panel operation
- Multiple compact panel sizes
- Accuracy: ±1% of FSD
- 230V AC supply
Technical Details :
The Sock Timer + Temperature Controller combines temperature control with adjustable timing for precise and reliable industrial process control. It supports multiple sensor inputs, configurable control modes, and different panel sizes.

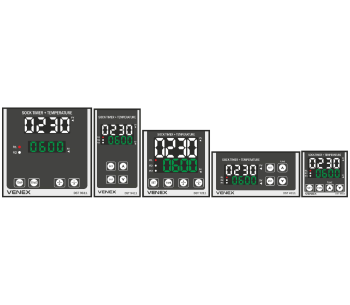

Models
| Parameter | DST 9611 | DST 9411 | DST 7211 | DST 4911 | DST 4811 |
|---|---|---|---|---|---|
| Frame | 96 × 96 mm | 96 × 48 mm | 72 × 72 mm | 48 × 96 mm | 48 × 48 mm |
| Panel Cutout | 92 × 92 mm | 92 × 44 mm | 68 × 68 mm | 44 × 92 mm | 44 × 44 mm |
| Display | 4 Digit 0.56" Red / 0.39" Green | 4 Digit 0.39" Red / 0.39" Green | 4 Digit 0.56" Red / 0.39" Green | 4 Digit 0.56" Red / 0.28" Green | 4 Digit 0.39" Red / 0.28" Green |
Overview
| Parameter | Details |
|---|---|
| Product Type | Sock Timer + Temperature Controller |
| Time Range | 9999 Second / Minute / Hour |
| Set Point | 1 Set Point |
| Operating Mode | Sock + Temperature |
Input
| Parameter | Details |
|---|---|
| Sensor | J & K or RTD & RTD.1, 2W/3W Configurable |
| J Range | 0°C to 400°C / 0°C to 600°C |
| K Range | 0°C to 1200°C |
| PT-100 Range | 0°C to 400°C / -50°C to 200°C |
Output
| Parameter | Details |
|---|---|
| Control Output | Relay + SSR / Relay + Relay |
| Capacity | 1CO, 7A, 230V AC |
| SSR | 12V DC Approximately |
Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Control Mode | PID / Time Proportional / ON-OFF |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C – 55°C |
| Relative Humidity | Up to 95% RH, Non-Condensing |
No input details available.
No output details available.
No specifications details available.
