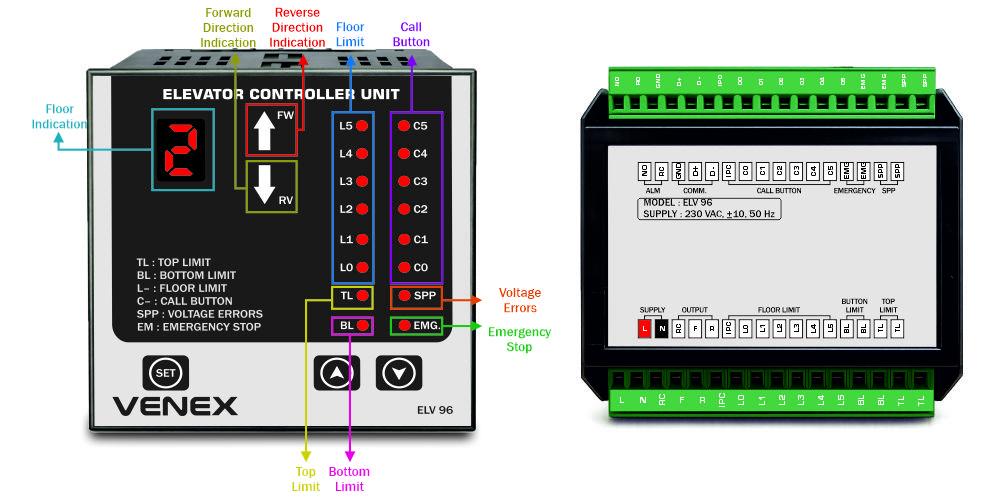

ELV 96 – Elevator Integrated Controller for Goods Elevator (G+5)
Features :
- Intelligent Elevator Control
- 5 Limit Switch Inputs
- 5 Call Switch Inputs
- Emergency Stop Input
- Forward / Reverse Control
- Voltage Error Indication
- Floor Limit Indication
- Alarm Output
Technical Details :
The ELV 96 is an integrated controller designed for goods elevator operation. It provides intelligent control with limit switch, call switch, emergency stop, fault handling, and forward/reverse control functions.
Model
| Model | Frame | Panel |
|---|---|---|
| ELV 96 | 96×96 | 92×92 |
Input
| Parameter | Details |
|---|---|
| ID Input | 5 Input for Limit Switch, 5 Input for Call Switch, Emergency Stop, SPP Input, Bottom Limit, Top Limit |
Output
| Parameter | Details |
|---|---|
| Relay | 1CO + 1CO + 1CO Followed by Forward Reverse & Alarm (7 Amp, 230 Volt AC) (NO-C-NC) |
Specifications
| Parameter | Details |
|---|---|
| AUX. | 230 VAC, 50 Hz, ±10% |
| Enclosure Material | ABS Plastic |
| Operating Temperature | 0°C – 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
No input details available.
No output details available.
No specifications details available.
