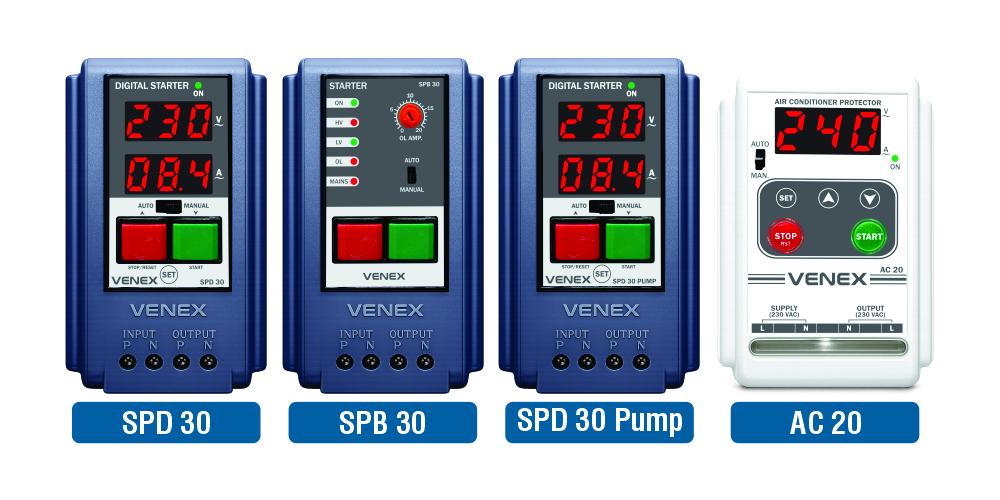

Induction Motor, Self Priming, AC Starter
Features :
- Adjustable Overload Protection
- High & Low Voltage Protection
- Dry Run Protection
- Delay OFF Timer
- Cyclic Timer
- Auto / Manual Operation
- Digital Voltage & Current Display
- Automatic Restart Function
- Suitable for 0.25 HP to 3 HP
Technical Details :
The Induction Motor Starter is designed for reliable protection and control of AC self-priming motors and pumps. It combines adjustable overload protection, voltage monitoring, and selectable timer functions to support safe and automatic motor operation.
Ordering Information
| Model No. | Overload | Voltage Protection | Timer | Auto / Manual Function |
|---|---|---|---|---|
| SPB 30 | 1–15 AMP, Settable by Pot | High & Low Volt Protection | — | Auto Start Starter; automatically starts motor/pump when power resumes in Auto Mode |
| SPD 30 | 0.5–15 AMP, Settable | High & Low Volt Protection (Settable) | — | — |
| SPD 40 | 0.5–25 AMP, Settable | High & Low Volt Protection (Settable) | — | — |
| SPD 30 Pump | 0.5–15 AMP, Settable | High & Low Volt Protection (Settable) + Dry Run | Delay OFF Timer (0–999 Min, Settable) | Auto Mode with Power-On Delay Time |
| SPD 40 Pump | 0.5–25 AMP, Settable | High & Low Volt Protection (Settable) + Dry Run | Delay OFF Timer (0–999 Min, Settable) | Auto Mode with Power-On Delay Time |
| AC 20 | 0.5–15 AMP, Settable | High & Low Volt Protection (Settable) | Delay OFF Timer (0–999 Min, Settable) | Auto Start Starter with automatic restart after power resumes |
