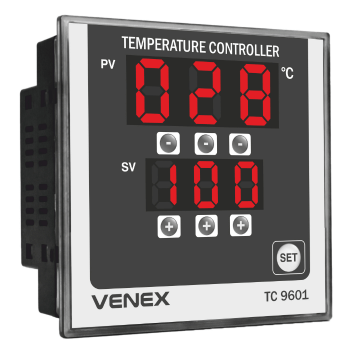

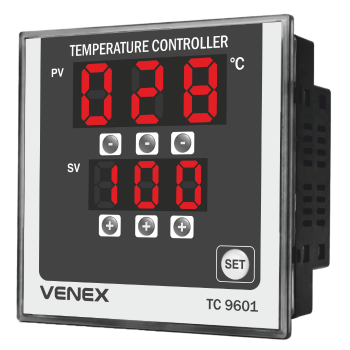

Feather Touch Temperature Controller
Features :
- Easy-to-operate feather-touch keypad
- Dual LED display for process and set-point values
- Multiple thermocouple and RTD input options
- Configurable relay and SSR control outputs
- Selectable ON-OFF and time-proportional control
- Supports HEAT and COOL operation
- Wide temperature measurement capability
- Compact panel-mounted construction
- Clear and quick set-point adjustment
Technical Details :
The Feather Touch Temperature Controller provides accurate temperature indication and dependable process control through an easy-to-operate front panel. It supports multiple sensor options and configurable control outputs for flexible industrial temperature applications.
Overview
| MODEL | TC 9601 | DTA 7244 |
|---|---|---|
| FRAME | 96 × 96 mm | 72 × 72 mm |
| PANEL | 92 × 92 mm | 68 × 68 mm |
| DISPLAY | 3 Digit 0.56" RED 3 Digit 0.36" GREEN | 3 Digit 0.36" RED 3 Digit 0.36" GREEN |
Input
| INPUT | DETAILS |
|---|---|
| Sensor | J & K or RTD & RTD 1W/3W (Configurable) Also available in R/S/T/N/PT 100 |
| Range | J: 0°C to 400°C K: 0°C to 600°C RTD/PT-100: 0°C to 400°C PT-100: -50°C to 200°C |
Output
| OUTPUT | DETAILS |
|---|---|
| Control Output | RELAY + SSR |
| Relay Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specifications
| SPECIFICATIONS | DETAILS |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 1 Set Point |
| Control Mode | Time Proportional / ON-OFF (Configurable) |
| Operating Mode | HEAT & COOL Mode (Factory Set) |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH, Non-Condensing |
No input details available.
No output details available.
No specifications details available.
