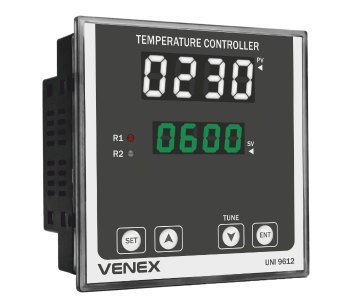

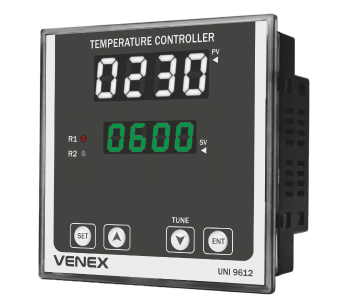

Universal Input Temperature Controller
Features :
- Universal J / K / OR / RTD input
- Configurable PID / ON-OFF / Time Proportional control
- Heating & cooling operation
- 2 set-point options
- Relay + SSR output
- 5 panel-size options
- 4-digit red & green digital display
- Accuracy: ±1% of FSD
Technical Details :
The Universal Input Temperature Controller is a versatile digital controller supporting multiple sensor inputs with configurable PID, ON-OFF, and time-proportional control for precise heating and cooling applications.

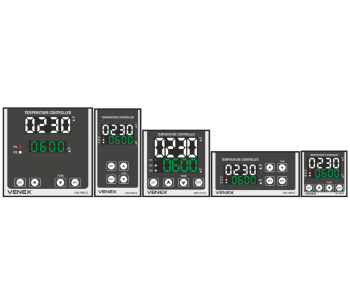

Models
| Parameter | UNI 9612 | UNI 9412 | UNI 7212 | UNI 4912 | UNI 4812 |
|---|---|---|---|---|---|
| Frame | 96 × 96 mm | 96 × 48 mm | 72 × 72 mm | 48 × 96 mm | 48 × 48 mm |
| Panel Cutout | 92 × 92 mm | 92 × 44 mm | 68 × 68 mm | 44 × 92 mm | 44 × 44 mm |
| Display | 4 Digit 0.56" Red / 4 Digit 0.39" Green | 4 Digit 0.39" Red / 4 Digit 0.29" Green | 4 Digit 0.56" Red / 4 Digit 0.39" Green | 4 Digit 0.56" Red / 4 Digit 0.39" Green | 4 Digit 0.39" Red / 4 Digit 0.29" Green |
Overview
| Parameter | Details |
|---|---|
| Product Type | Universal Input Temperature Controller |
| Control | Heating / Cooling |
| Set Point | 2 Set Point (Heat or Cool) |
| Control Mode | Time Proportional / ON-OFF / PID |
Input
| Parameter | Details |
|---|---|
| Sensor | J / K or RTD & RTD.1, 2W/3W Configurable |
| J Range | 0°C to 400°C / 0°C to 600°C |
| K Range | 0°C to 1200°C |
| PT-100 Range | 0°C to 400°C / -50°C to 200°C |
Output
| Parameter | Details |
|---|---|
| Control Output | Relay + Relay + SSR |
| Capacity | 1CO + 1CO, 7A, 230V AC |
| SSR | 12V DC Approximately |
Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C – 55°C |
| Relative Humidity | Up to 95% RH, Non-Condensing |
