Technical Details :

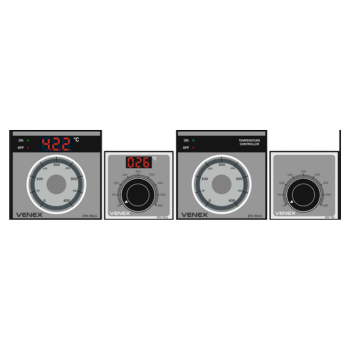

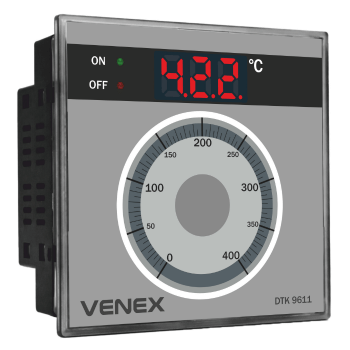

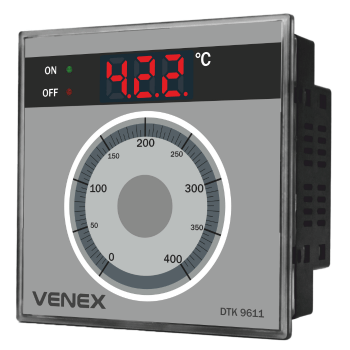

The Digital Blind Temperature Controller combines temperature indication with convenient blind control for process heating applications. Its compact panel design, clear digital display, and compatible J, K, and RTD sensor inputs provide simple and reliable temperature regulation.
Overview
| MODEL | DTC 9644 | DTI 9644 |
|---|---|---|
| FRAME | 96×96 | 96×96 |
| PANEL | 92×92 | 92×92 |
| DISPLAY | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN |
Input
| Parameter | Details |
|---|---|
| Sensor | J & K or RTD & RTD 1.2W/3W (Configurable) |
| Temperature Range | J: 0°C to 400°C & 0°C to 600°C; K: 0°C to 1200°C; PT-100: 0°C to 400°C, -50°C to 200°C |
| Stage | 9999 Second / Minute / Hour |
Output
| Parameter | Details |
|---|---|
| Control Output | RELAY |
| Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specification
| Parameter | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 4 Set Points |
| Control Mode | ON-OFF |
| Operating Mode | HEAT & COOL Mode |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH Non-Condensing |
