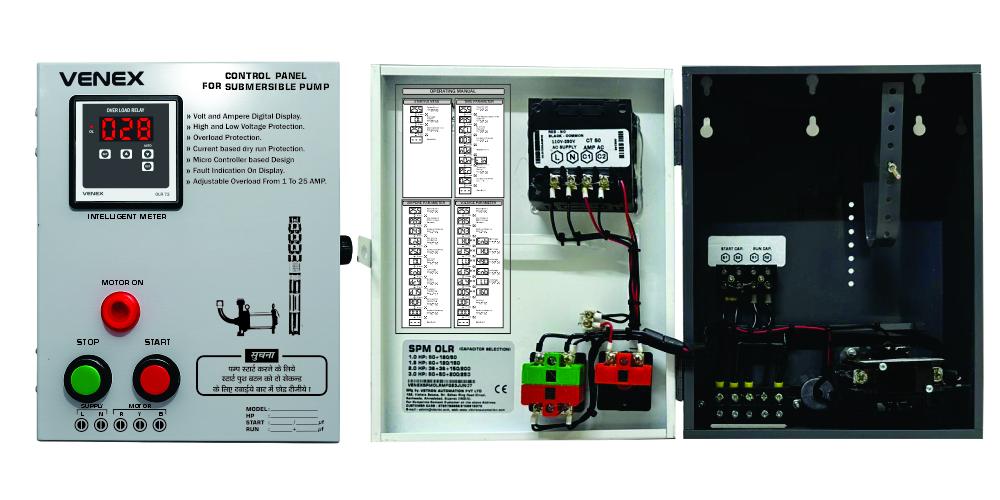

Single Phase Submersible Starter
Features :
- Overload & Dry-Run Protection
- High & Low Voltage Protection
- Voltage & Current Digital Display
- Delay OFF Timer
- Cyclic Timer
- Dry Reset Timer
- Suitable for 0.25 HP to 3 HP Pumps
- Accurate Electrical Parameter Monitoring
Technical Details :
The Single Phase Submersible Starter is a compact motor protection and control panel designed for single-phase submersible pumps from 0.25 HP to 3 HP. It combines voltage and current monitoring with overload, dry-run, and voltage protection for dependable pump operation.
Models
| Model No. | Load Capacity | Input Supply | Overload Ampere |
|---|---|---|---|
| SPM 0LR Panel | 0.5 HP to 3 HP | 230 VAC, 50 Hz, ±10% | 1 Ampere to 25 Ampere |
Protection
| Protection | Details |
|---|---|
| Over Load | Over Current Protection |
| Dry Run | Under Current Protection |
| Voltage Protection | High & Low Voltage Protection |
Features
| Feature | Details |
|---|---|
| Timer | Delay OFF & Cyclic Timer |
| Reset | Dry Reset Timer |
| Display | Digital Voltage & Current Display |
| Motor Protection | Protection against Voltage Fluctuation, Overload & Dry Run |
No input details available.
No output details available.
No specifications details available.
