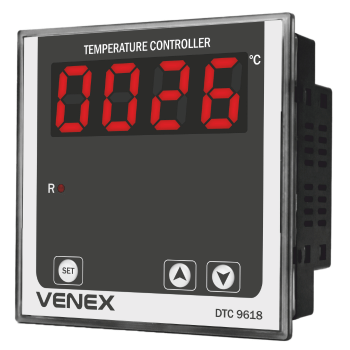

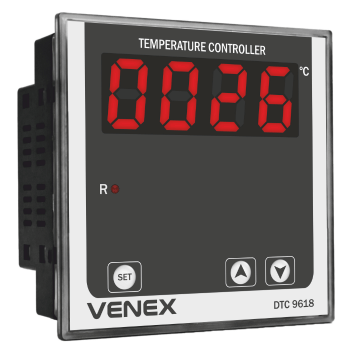

Jumbo Single Display Temperature Controller
Features :
- Large single LED display for easy temperature visibility
- Clear 4-digit red display with °C indication
- Supports thermocouple and RTD sensor options
- Configurable sensor input selection
- Relay and SSR control outputs
- Selectable ON-OFF or time-proportional control
- HEAT and COOL operating modes
- Simple front-panel set-point adjustment
- Robust polycarbonate and ABS enclosure
- Suitable for continuous industrial temperature monitoring
Technical Details :
The Jumbo Single Display Temperature Controller is built for clear and easy-to-read temperature monitoring with a large 4-digit display. Its configurable sensor inputs and dual control output options provide dependable temperature regulation for industrial processes.
Overview
| Model | DTC 9618 |
|---|---|
| Frame | 96 × 96 mm |
| Panel | 92 × 92 mm |
| Display | 4 Digit 0.80" Red |
Input
| Input | Details |
|---|---|
| Sensor | J & K or RTD & RTD.1 2W/3W (Configurable) Also available in R/S/T/N/PT 100 |
| Range | J: 0°C to 400°C K: 0°C to 600°C K: 0°C to 1200°C PT-100 2W/3W: 0°C to 400°C PT-100: -50.0°C to 200.0°C |
Output
| Output | Details |
|---|---|
| Control output | Relay + SSR |
| Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specifications
| Specifications | Details |
|---|---|
| Supply voltage | 230V AC, ±10%, 50Hz |
| Set point | 1 Set Point |
| Control mode | Time Proportional / ON-OFF (Configurable) |
| Operating mode | Heat or Cool Mode (Factory Set) |
| Accuracy | ±1% of FSD |
| Enclosure material | Polycarbonate + ABS Plastic |
| Operating temperature | 0°C to 55°C |
| Relative humidity | Up to 95% RH Non-Condensing |
