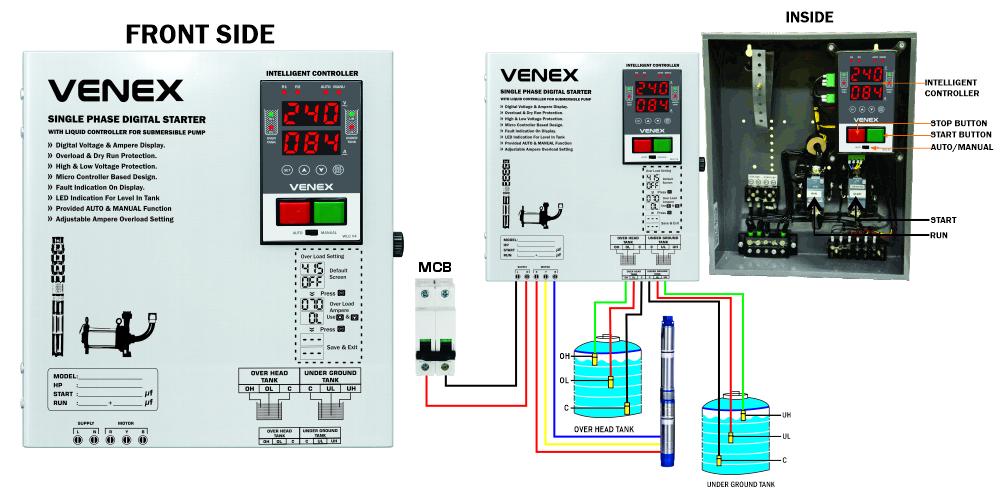

Submersible Fully Automatic Starter with Water Level Controller
Features :
- Fully Automatic Pump Operation
- Water Level Control
- Overload Protection
- Dry Run Protection
- High & Low Voltage Protection
- Delay OFF & Cyclic Timer
- Dry Reset Timer
- Auto / Manual Mode
- Automatic Start / Stop
- Heavy-Duty M.S. Powder-Coated Enclosure
- Easy Replacement of Parts
- Helps Save Electricity & Water
Technical Details :
A fully automatic starter designed for submersible pumps with integrated water level control. It automatically manages pump operation based on tank water levels while providing essential motor protection against overload, dry run, and voltage fluctuations.
Ordering Information
| Model No. | Load Capacity | Input Supply | Over Load Ampere |
|---|---|---|---|
| WLC V4 | 0.5 HP to 3 HP | 230 VAC, ±10% | SS / Carbon / Float Switch |
Protection
| Protection | Details |
|---|---|
| Overload Protection | Over Current Protection |
| Dry Run Protection | Under Current Protection |
| Voltage Protection | High & Low Voltage Protection |
Features
| Feature | Details |
|---|---|
| Timer | Delay OFF & Cyclic Timer |
| Reset | Dry Reset Timer |
| Operating Mode | Auto / Manual Mode |
| Water Level Control | Automatically starts and stops the motor based on tank water level |
| Energy & Water Saving | Helps reduce unnecessary motor operation |
| Maintenance | Easy to Replace Parts |
| Enclosure | Heavy-Duty M.S. Powder-Coated Enclosure |
No input details available.
No output details available.
No specifications details available.
