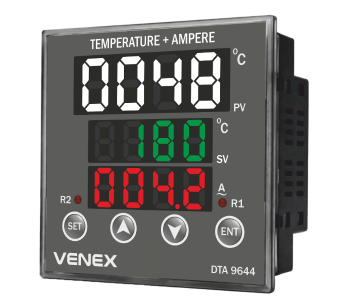

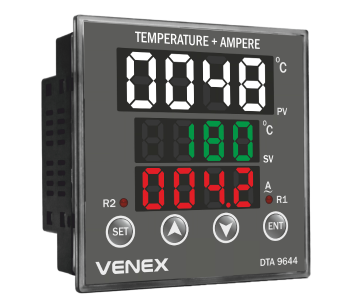

3 Line Temperature + Ampere Controller
Features :
- Temperature + Ampere display
- Multiple sensor inputs
- CT input: 50A / 100A / 250A
- ON-OFF / PID control
- Heating & Cooling modes
- Relay / SSR outputs
- 1 or 2 set-point options
- Available in 96×96 and 72×72 mm models
Technical Details :
Digital 3 Line Temperature + Ampere Controller for accurate temperature and current monitoring with configurable control functions, suitable for industrial applications.

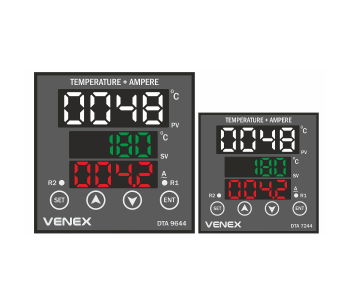

Models
| Parameter | DTA 9644 | DTA 7244 |
|---|---|---|
| Frame | 96 × 96 mm | 72 × 72 mm |
| Panel Cutout | 92 × 92 mm | 68 × 68 mm |
| Display | 4 Digit 0.56" Red / 4 Digit 0.39" Green | 4 Digit 0.39" Red / 4 Digit 0.29" Green |
Input
| Parameter | Details |
|---|---|
| Sensor | J & K or RTD & RTD.1 2W/3W (Configurable) |
| Additional Sensor Options | R/S/T/N/Pt 1000 available |
| Range – J | 0°C to 400°C & 0°C to 600°C |
| Range – K | 0°C to 1200°C |
| Range – PT-100 | 2W/3W: 0°C to 400°C; -50°C to 200°C |
| CT Input | 50A |
Output
| Parameter | Details |
|---|---|
| Control Output | Relay + SSR / Relay + Relay / Relay + Relay + SSR (Factory Set) |
| Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 1 Set Point / 2 Set Point |
| Control Mode | Time Proportional / ON-OFF / PID (Configurable) |
| Operating Mode | HEATING / COOLING Mode |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C – 55°C |
| Relative Humidity | Up to 95% RH, Non-Condensing |
