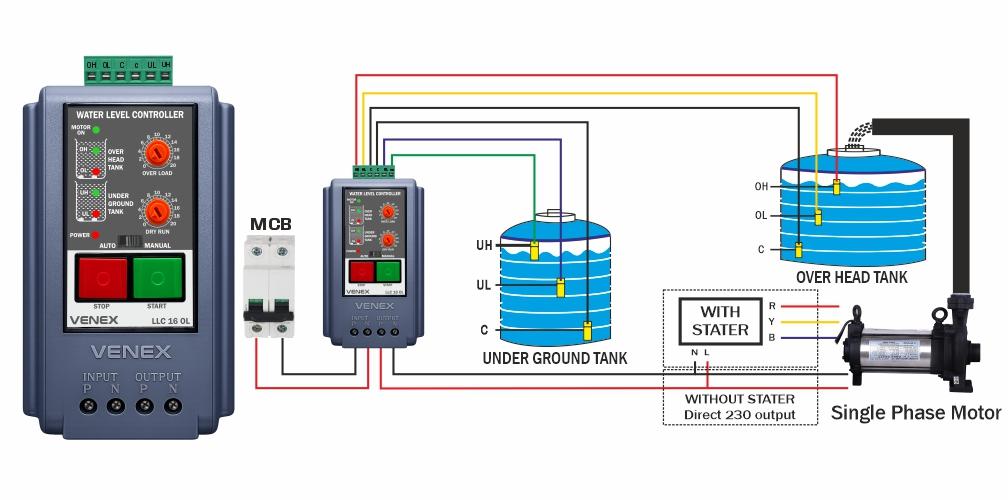

Single Phase Water Level Controller
Features :
- Automatic motor start/stop based on tank level
- Auto / Manual mode selection
- Tank level LED indication
- Adjustable overload setting
- Helps prevent tank overflow
- Energy and water saving operation
- Microcontroller-based control
- Suitable for single-phase motors
Technical Details :
The Single Phase Water Level Controller provides automatic pump control based on water levels in underground and overhead tanks. It is suitable for single-phase motors and helps manage water supply while reducing unnecessary pump operation.
Models
| Model No. | Load Capacity | Input Supply | Sensor |
|---|---|---|---|
| LLC 16 OL | 0.5 HP to 2 HP | 230 VAC, 50 Hz (±10%) | Water Level Sensor & Float Switch |
Input
| Input Type |
|---|
| Water Level Sensor & Float Switch |
Output
| Output Type |
|---|
| Direct 230 V Output |
Specifications
| Specification | Details |
|---|---|
| Supply Voltage | 230 VAC |
| Frequency | 50 Hz |
| Voltage Tolerance | ±10% |
| Motor Load | 0.5 HP to 2 HP |
| Protection | Overload & Tank Overflow |
No input details available.
No output details available.
No specifications details available.
