Technical Details :

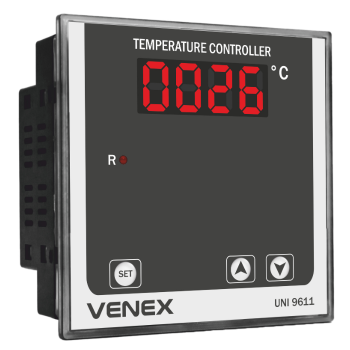

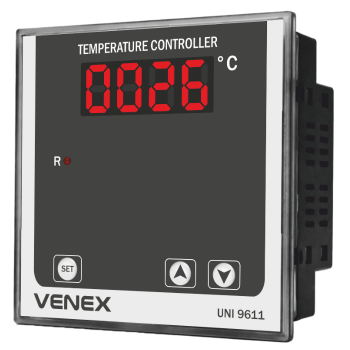

The Single Display Universal Input Temperature Controller is built for flexible temperature measurement and process regulation across a wide range of industrial applications. Its universal sensor compatibility, selectable heating/cooling operation, and configurable control modes provide dependable and convenient temperature management.
Overview

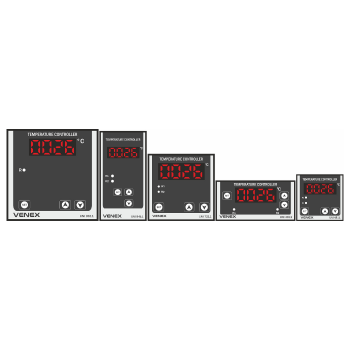

| MODEL | UNI 9611 | UNI 9411 | UNI 7211 | UNI 4911 | UNI 4811 |
|---|---|---|---|---|---|
| FRAME | 96×96 | 96×48 | 72×72 | 48×96 | 48×48 |
| PANEL | 92×92 | 92×44 | 68×68 | 44×92 | 44×44 |
| DISPLAY | 4 Digit 0.56" RED | 4 Digit 0.39" RED | 4 Digit 0.56" RED | 4 Digit 0.56" RED | 4 Digit 0.39" RED |
Input
| Parameter | Details |
|---|---|
| Sensor | J & K or RTD & RTD 1.2W/3W (Configurable) |
| Additional Input | R/S/T/N/PT 1000 Available |
| J Sensor Range | 0°C to 400°C & 0°C to 600°C |
| K Sensor Range | 0°C to 1200°C |
| PT-100 Range | 0°C to 400°C, -50°C to 200°C |
Output
| Parameter | Details |
|---|---|
| Control Output | RELAY + SSR |
| Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specification
| Parameter | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 1 Set Point |
| Control Mode | Time Proportional / ON-OFF (Configurable) |
| Operating Mode | HEAT & COOL Mode (Factory Set) |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH, non-condensing |
