Humidity Controller
Features :
- Digital humidity monitoring and control
- Supports humidity sensor input
- 20% to 90% RH measuring range
- 0–5.0 VDC input range
- Dual digital display
- Relay control output
- Compact 96 × 96 mm panel design
- Suitable for industrial environmental control applications
Technical Details :

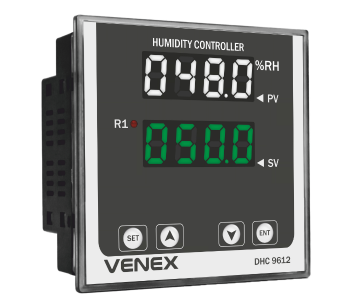

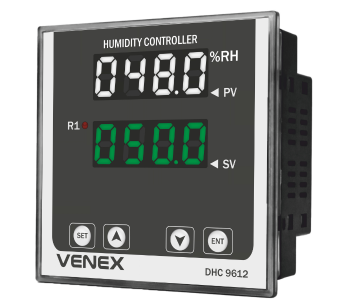

The DHC 9612 Humidity Controller is a compact digital controller designed for accurate humidity monitoring and control. It supports humidity sensor inputs, clear dual displays, and relay output for reliable environmental regulation.
Models
| Parameter | Details |
|---|---|
| Model | DHC 9612 |
| Frame | 96 × 96 mm |
| Panel Cutout | 92 × 92 mm |
| Display | 4 Digit 0.56" White + 4 Digit 0.39" Green |
Input
| Parameter | Details |
|---|---|
| Sensor | Humidity Sensor |
| Range | 20% to 90% RH or 0.0 to 5.0 VDC |
Output
| Parameter | Details |
|---|---|
| Capacity | 1CO, 7 Amp, 230 VAC (NO-C-NC) |
Specifications
| Parameter | Details |
|---|---|
| Power Supply | 90–285V AC, 50–60 Hz |
| Power Consumption | <5W |
| Working Environment | Temperature: -10°C to 60°C; Humidity: <80% RH |
| Storage Environment | Temperature: -20°C to 70°C; Humidity: <90% RH |
| Measuring Range | Humidity: 20.0% to 90.0% RH |
| Measuring Accuracy | Humidity: ±5% |
| Dielectric Strength | 1600V AC (1 Min) |
| Dimension | 96 × 96 × 55 mm |
No input details available.
No output details available.
No specifications details available.
