Technical Details :

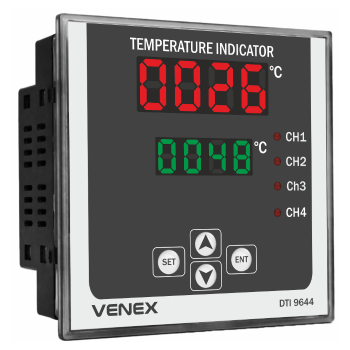

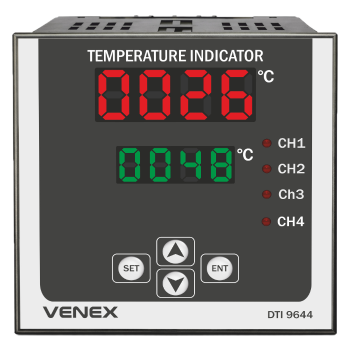

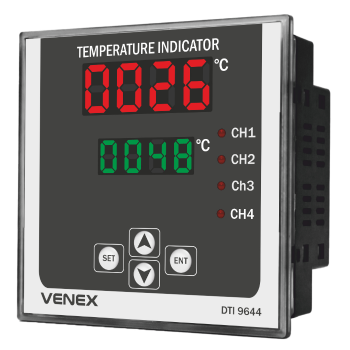

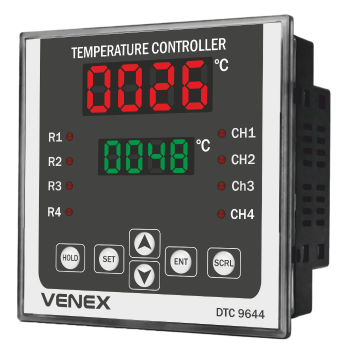

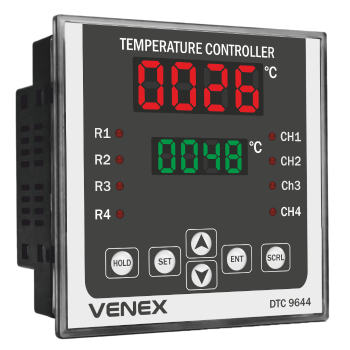

The 4 Channel Temperature Controller & Indicator enables centralized monitoring and control of multiple temperature points through a single unit. It combines four set points with configurable sensor inputs and reliable relay-based control, making it suitable for multi-zone industrial temperature applications.
Overview

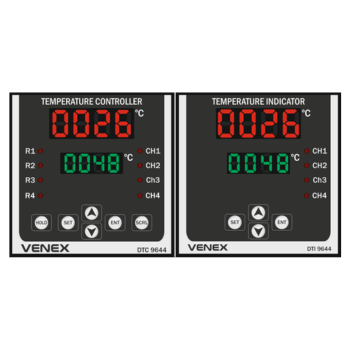

| MODEL | DTC 9644 | DTI 9644 |
|---|---|---|
| FRAME | 96×96 | 96×96 |
| PANEL | 92×92 | 92×92 |
| DISPLAY | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN | 4 Digit 0.56" RED / 4 Digit 0.39" GREEN |
Input
| Parameter | Details |
|---|---|
| Sensor | J & K or RTD & RTD 1.2W/3W (Configurable) |
| Temperature Range | J: 0°C to 400°C & 0°C to 600°C; K: 0°C to 1200°C; PT-100: 0°C to 400°C, -50°C to 200°C |
| Stage | 9999 Second / Minute / Hour |
Output
| Parameter | Details |
|---|---|
| Control Output | RELAY |
| Capacity | 1CO, 7 Amp, 230 Volt AC |
| SSR | 12V DC Approximately |
Specification
| Parameter | Details |
|---|---|
| Supply Voltage | 230V AC, ±10%, 50Hz |
| Set Point | 4 Set Points |
| Control Mode | ON-OFF |
| Operating Mode | HEAT & COOL Mode |
| Accuracy | ±1% of FSD |
| Enclosure Material | Polycarbonate + ABS Plastic |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH Non-Condensing |
