PROXY RPM CONTROLLER

Related Products

PROXY RPM CONTROLLER


Features:

  • Operating, economic model
  • Control output RELAY
  • The new version updated 4 + 4 digits display
  • Industrial level of EMC test & higher reliability
  • NPN / PNP proxy / Micro switch

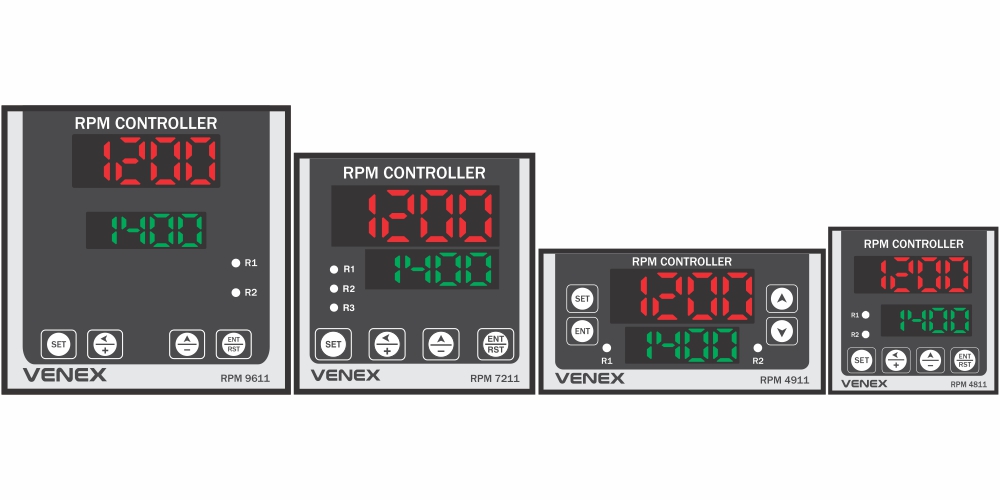

Model

RPM 9611

RPM 7211

RPM 4911

RPM 4811

Frame

96 x 96

72 x 72

48 x 96

48 x 48

Panel

92 x 92

68 x 68

44 x 92

44 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.36” RED

4 Digit 0.28” GREEN



Specifications:

Input Single

NPN / PNP Proxy or Micro Switch (230 V AC Pulse) Factory Set

Control Output

1CO OR 2CO OR SSR (Factory Set)

Relay Reating

1CO, 5 Amp., 230 Volt AC

SSR / Buzzer

12 V DC Approximately (Optional)

Supply Voltage

230V AC, ±10%, 50Hz

Reset Facility

Auto Reset / By Front Keypad & Back Reset

Memory Retention

Non Volatile Memory

Range

0-9999 RPM

Enclosure Material

Polycarbonate + ABS Plastic

Operating Temperature

0°C 55°C

Relative Humidity

Upto 95% RH Non Condensing
