PROCESS CONTROLLER


Features:

  • Operating, economic mode
  • Control output RELAY
  • Up to 2 relay
  • Analog input 4 - 20 MA / 0 - 10 V DC / 0 - 20 MA
  • The new version updated 4 + 4 digits display
  • Industrial level of EMC test & higher reliability

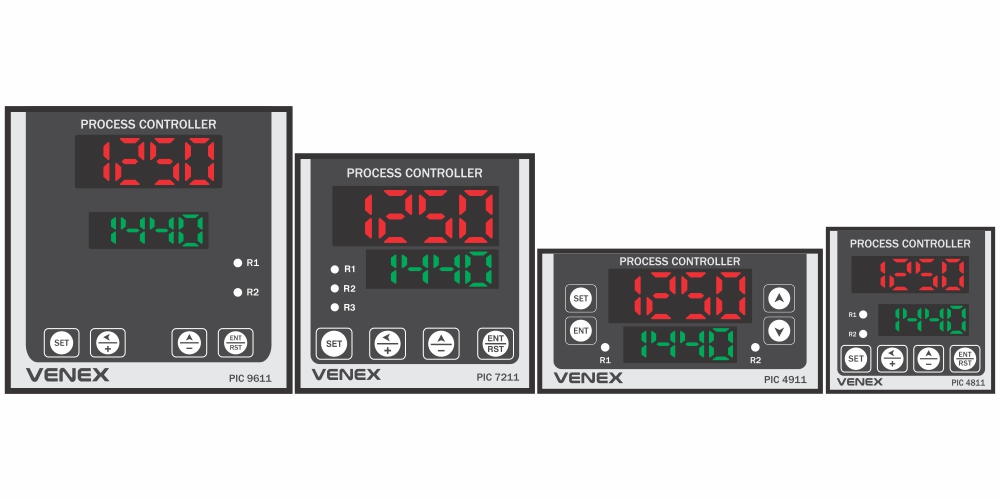

Model

PIC 9611

PIC 7211

PIC 4911

PIC 4811

Frame

96 x 96

72 x 72

48 x 96

48 x 48

Panel

92 x 92

68 x 68

44 x 92

44 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

 4 Digit 0.39” GREEN

4 Digit 0.36” RED

4 Digit 0.28” GREEN



Specifications:

Input Single

0-10 V DC / 4-20 MA / 0-20 MA (Factory Set)

Control Output

1CO OR 2CO OR SSR (Factory Set)

Relay Reating

1CO, 5 Amp. 230 Volt AC

SSR / Buzzer

12 V DC Approximately (Optional)

Supply Voltage

230V AC, ±10%, 50Hz

Reset Facility

Auto Reset / By Front Keypad & Back Reset

Memory Retention

Non Volatile Memory

Range

0-9999 Count

Enclosure Material

Polycarbonate + ABS Plastic

Operating Temp.

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing
