CYCLIC TIMER

Features:

  • Operating, economic model
  • Control output RELAY / SSR
  • The new version updated 4 digits display
  • Industrial level of EMC test & higher reliability
  • Easy operating
  • No of cycle selection
  • Trigger, enable, power ON

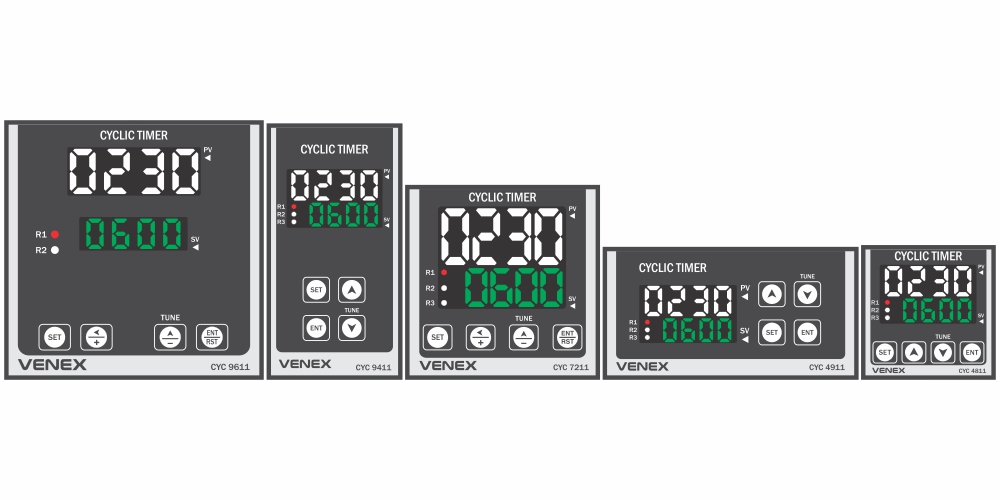

Model

CYC 9611

CYC 9411

CYC 7211

 CYC 4911  CYC 4811

Frame

96 x 96

96 x 48

72 x 72

 48 x 96 48 x 48

Panel

92 x 92

92 x 44

68 x 68

 44 x 92 44 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.39” RED

 4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

 4 Digit 0.28” GREEN

4 Digit 0.39” RED

4 Digit 0.28” GREEN




Specifications:

Set Point

   2 Set Point ON TIME / OFF TIME / TOTAL TIME / TOTAL Time

Range Setting

 99.99 / 999.9 / 9999 Sec. / Min. / Hrs. (Configurable)

Control Output

1CO (2 Relay)

Relay Rating

1CO, 7 Amp., 230 Volt AC

Supply Voltage

230v AC, ±10%, 50Hz

Start Command

Start & Stop Facility in Front Keypad & Back Terminal

Memory Retention

YES / NO (Configurable)

Enclosure Material

Polycarbonate + ABS Plastic

Operating Temp.

0°C 55°C

Relative Humidity

Upto 95% RH Non Condensing
