DIGITAL PRESET TIMER

Features:

  • Operating, economic model
  • Control output RELAY / 12 V. DC
  • The new version updated 3 digits display
  • Industrial level of EMC test & higher reliability
  • Thumb switch setting intuitive & Easy operating
  • Delay ON / Delay OFF
  • Power fail memory Configurable Input function
  • Trigger start, power on start

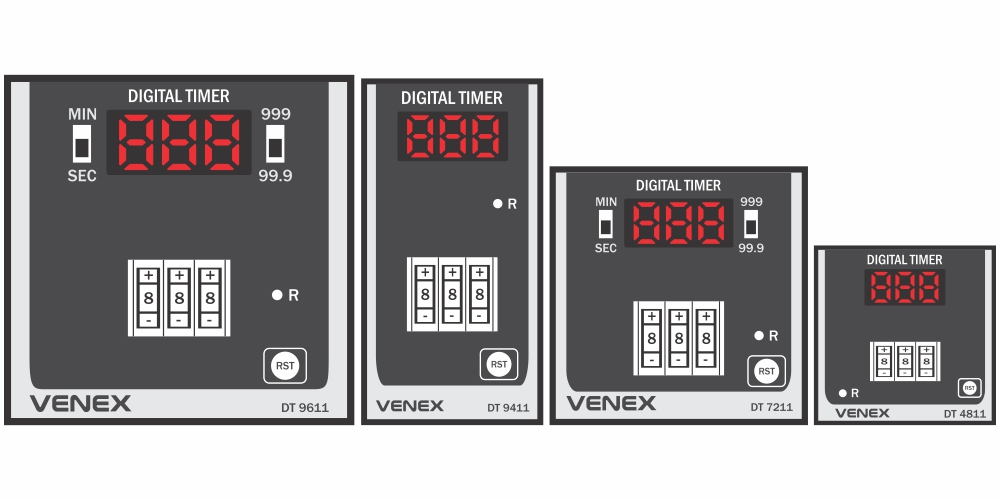

Model

DT 9611

 DT 9411

DT 7211

DT 4811

Frame

96 x 96

 96 x 48

72 x 72

48 x 48

Panel

92 x 92

 92x 42

68 x 68

42 x 42

Display

3 Digit 0.56” RED

3 Digit 0.56” RED

3 Digit 0.56” RED

 3 Digit 0.39” RED




Specifications:

INPUT

Time Setting

    Setting by THUMBWHEEL Switch


Counting Direction

    Up / Down (Factory Set)


Range Setting

    0 - 99.9 / 999 Sec./Min.
OUTPUT

Control Output

    RELAY + RELAY + SSR


Relay Rating

  1CO + 1CO, 7 Amp, 230 Volt AC


SSR / Buzzer

  12 V DC Approximately
SPECIFICATIONS

Supply Voltage

  230v AC, ±10%, 50Hz


Reset Facility

  By Frount Keypad


Start Counting Time

  Starts ON with Power Supply


Operating Mode

  Delayed ON / Instant ON (Factory Set)


Enclosure Material

  Polycarbonate + ABS Plastic


Operating Temp

  0°C 55°C


Operating Temp

  Upto 95% RH Non Condensing
