FORWARD REVERSE TIMER

Features:

  • Operating, economic model
  • Control output RELAY
  • The new version updated 4 digits display
  • Industrial level of EMC test & higher reliability
  • Easy operating
  • Back - start & stop terminal

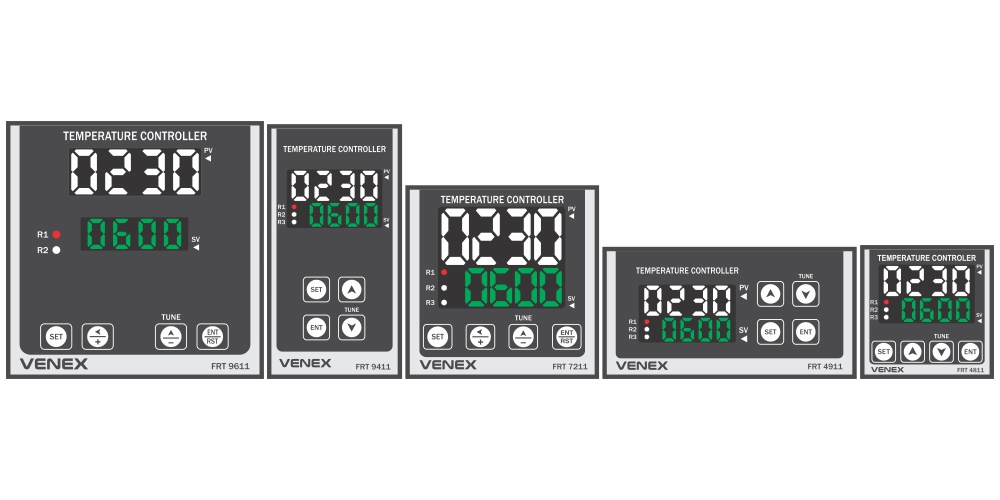

Model

FRT 9611

 FRT 9411

 FRT 7211

FRT 4911

FRT 4811

Frame

96 x 96

 96 x 48

72 x 72

48 x 96

48 x 48

Panel

92 x 92

 92x 44

68 x 68

44 x 92

44 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.39” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.28” GREEN

4 Digit 0.39” RED

4 Digit 0.28” GREEN

Specifications:

INPUT

Set Point

4 Set Point FORWARD / STOP / REVERSE / TOTAL  time


Range Setting

99.99 / 999.9 / 9999 Sec. / Min. / Hrs. (Configurable)
OUTPUT

Control Output

1CO (2 Relay)


Relay Rating

1CO, 7 Amp. 230 Volt AC
SPECIFICATIONS

Supply Voltage

 230v AC, ±10%, 50Hz


Start Command

 Start & Stop Facality in Front Keypad & Back Terminal


Memory Retention

 YES / NO (Configurable)


Enclosure Material

 Polycarbonate + ABS Plastic


Operating Temperature

 0°C - 55°C


Relative Humidity

 Upto 95% RH Non Condensing
