PROGRAMMABLE UNIVERSAL TIMER

Features:

  • Economical & practical, dual line 4 digits display
  • Control output RELAY
  • The new version updated 4 digits display
  • Industrial level of EMC test & higher reliability
  • High performance microprocessor as controlling care
  • High accuracy and at inference capability
  • Easy operating
  • Delay ON / Delay OFF / Cyclic Mode
  • UP time & DOWN time

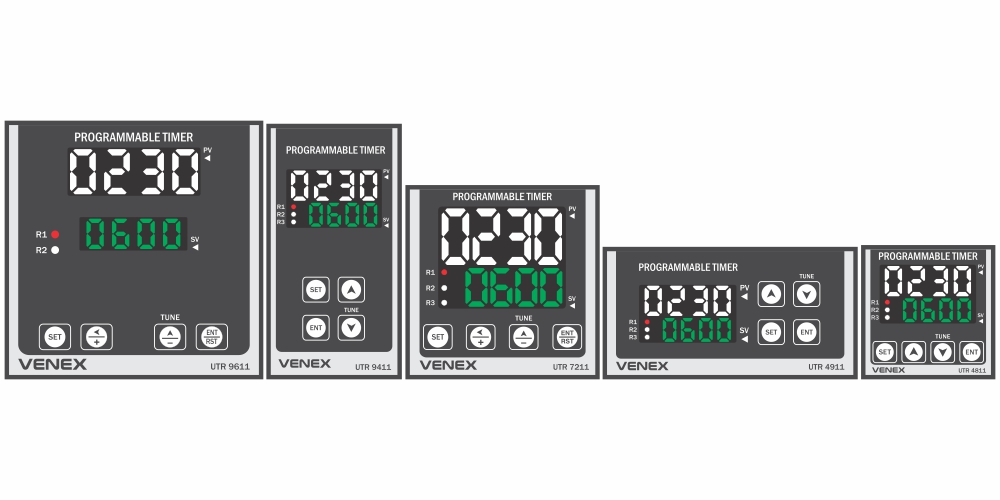

Model

UTR 9611

 UTR 9411

UTR 7211

 UTR 4911

UTR 4811

Frame

96 x 96

 96 x 48

72 x 72

 48 x 96

48 x 48

Panel

92 x 92

 92x 44

68 x 68

 44 x 92

44 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.39” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

4 Digit 0.28” GREEN

4 Digit 0.39” RED

4 Digit 0.28” GREEN

Specifications:

SETTING

Set Point

1 Set Point For Delayed ON / Instant ON OR 2 Set Point For Cycle Mode


Counting Direction

Up / Down (Configurable)


Range Setting

99.99 / 999.9 / 9999 Sec. / Min. / Hrs. (Configurable)
INPUT

Start Pulse

Micro switch / Limit Switch / Proximity


Start Pulse Type

Power ON / Enable / Trigger
OUTPUT

Control Output

1CO OR 2CO OR SSR (Factory Set)


Relay Rating

1CO, 7 Amp. 230 Volt AC


SSR / Buzzer

12 V DC Approximately
SPECIFICATIONS

Supply Voltage

230v AC, ±10%, 50Hz


Reset Facility

By Frount Keypad & Back Reset


Memory Retention

YES / NO (Configurable)


Operating Mode

Delayed ON / Instant ON / Cycle Mode (Configurable)


Enclosure Material

Polycarbonate + ABS Plastic


Operating Temperature

0°C - 55°C


Relative Humidity

Upto 95% RH Non Condensing
SETTING Set Point 1 Set Point For Delayed ON / Instant ON OR 2 Set Point For Cycle Mode
  Counting Direction Up / Down (Configurable)
  Range Setting 99.99 / 999.9 / 9999 Sec./ Min. / Hrs. (Configurable)
INPUT Start Pulse Micro Switch / Limit Switch / Proximity
  Start Pulse type power ON / Enable / Tigger
OUTPUT Control Output 1CO OR 2CO OR SSR
  Relay Rating 1CO, 7 Am., 230 Volt AC
  SSR / Buzzer 12 V DC Approximately
SPECIFICATIONS  Supply Voltage 230v AC, ±10%, 50Hz
  Reset Faility By Front Keypad & Back Reset
  Memory Retention YES/NO (Configurable)
  Operating Mode Delayed ON / Instant ON / Cycle Mode (Configurable)
  Enclosure Material Polycarbonate + ABS Plastic
  Operating Temperature 0°C - 55°C
  Relative Humidity Upto 95% RH Non Condensing
