Features:

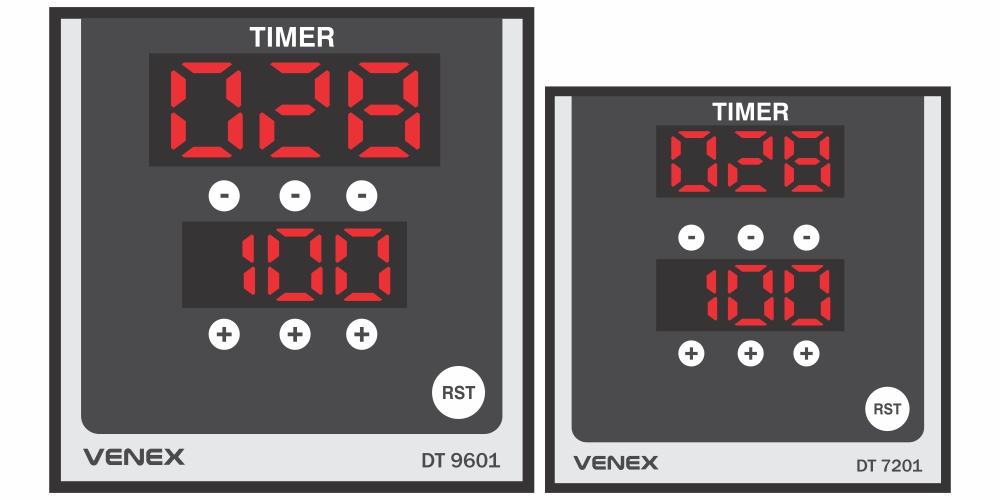

Model |
DT 9601 |
DT 7201 |
Frame |
96 x 96 |
72 x 72 |
Panel |
92 x 92 |
68 x 68 |
Display |
3 Digit 0.56” RED 3 Digit 0.36” RED |
3 Digit 0.36” RED 3 Digit 0.36” RED |
Specifications:
INPUT |
Set Point |
2 Set Point ON TIME / OFF TIME / TOTAL TIME TOTAL time |
Range Setting |
99.99 / 999.9 / 9999 Sec./ Min. / Hrs. (Configurable) |
|
OUTPUT |
Control Output |
1CO (2 Relay) |
Relay Rating |
1CO, 7 Amp, 230 Volt AC |
|
SPECIFICATIONS |
Supply Voltage |
230v AC, ±10%, 50Hz |
Reset Facility |
By Frount Keypad |
|
Start Counting Time |
Starts ON with Power Supply |
|
Operating Mode |
Delayed ON / Instant ON (Factory Set) |
|
Enclosure Material |
Polycarbonate + ABS Plastic |
|
Operating Temperature |
0°C 55°C |
|
Relative Humidity |
Upto 95% RH Non Condensing |
